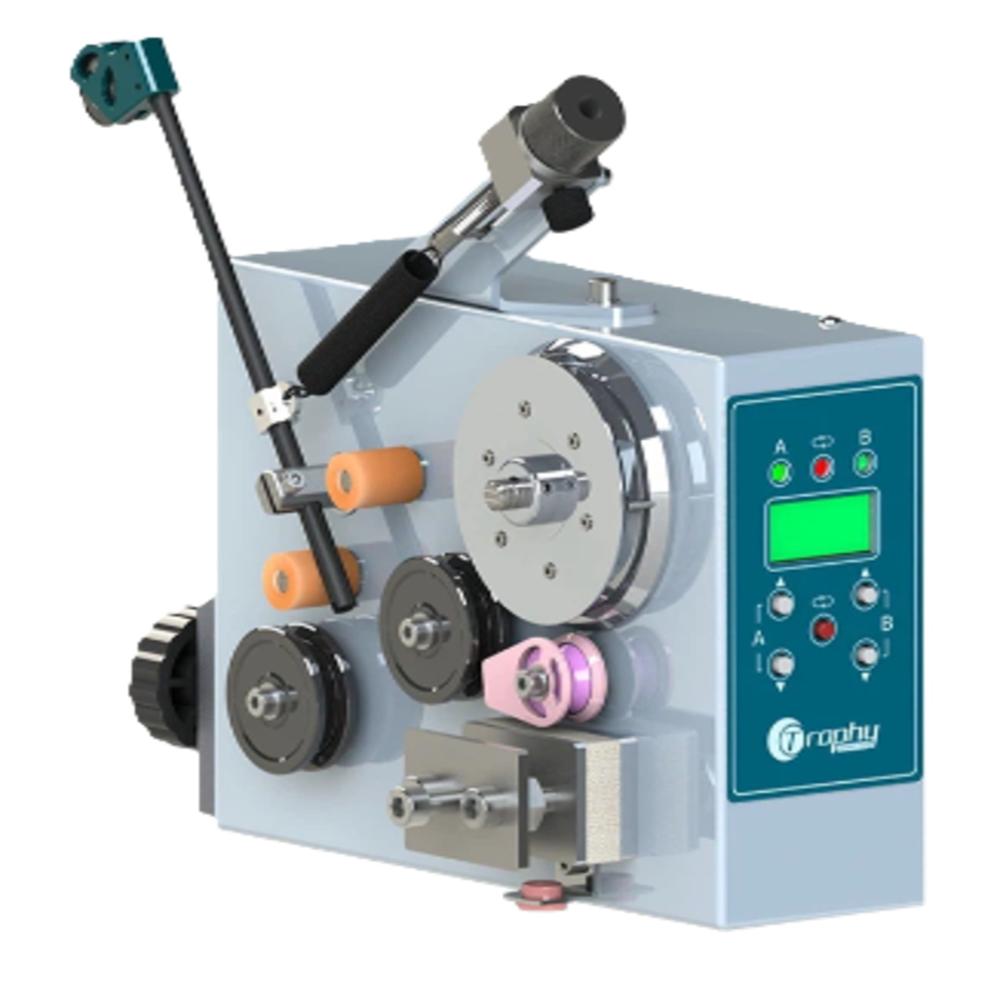

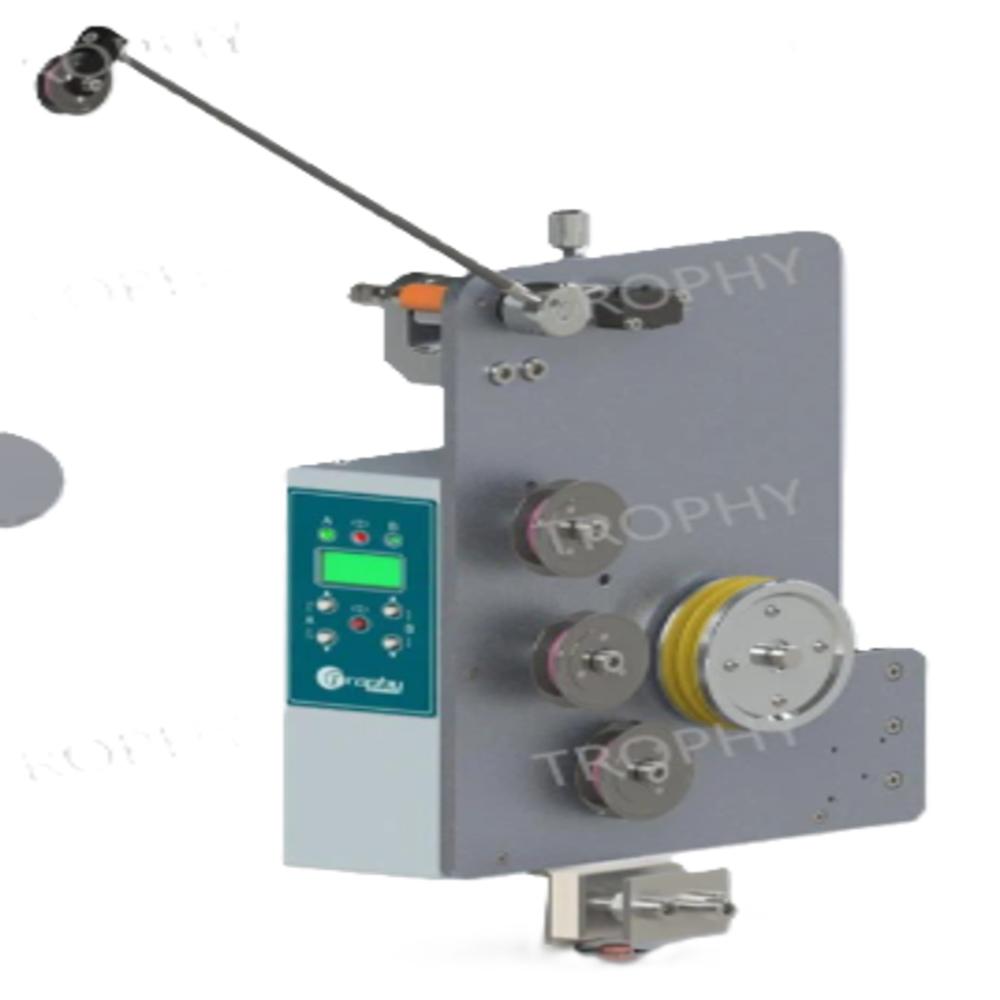

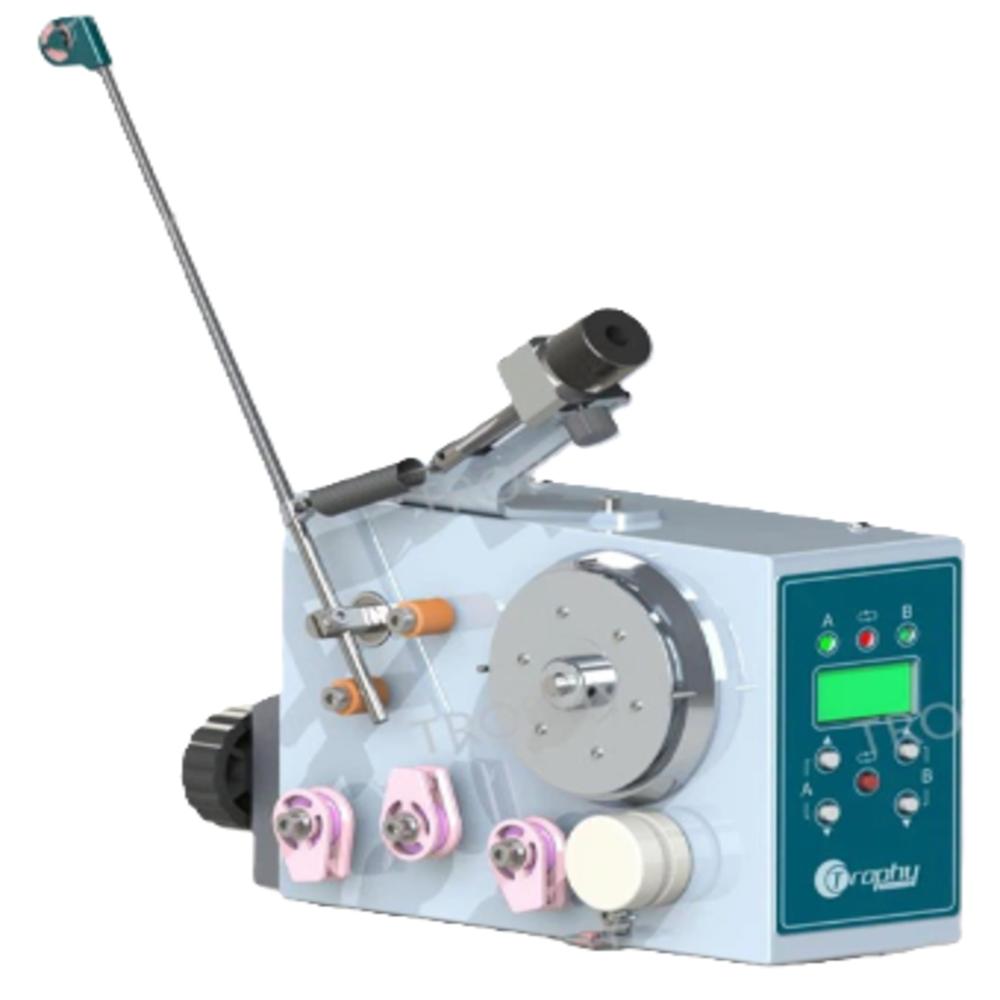

ELECTRONIC TENSIONER MET-HE Series

70000.0 INR/1

Get a Price/Quote

Product Details:

Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELECTRONIC TENSIONER MET-HE Series Price And Quantity

Minimum Order Quantity 1 Number
Price 70000.0 INR/1

ELECTRONIC TENSIONER MET-HE Series Trade Information

Payment Terms Others
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

MET-HE Series

The expression of the panel and tension values The tensioner sets the maximum damping force provided by the damper to 100% and divides the damping into 100 parts, each part as a scale value. The larger the value displayed on the LED screen, the greater the corresponding output tension, and the smaller the vice versa.

The tensioner control panel is shown in Figure

ADVANTAGES :

a.The damping is adjusted by changing the voltage, and the tension at both ends can be switched with a button, making operation simple.

b.It adopts the standard Modbus RTU protocol, enabling communication with customer PLCs, HMIs, and MES systems.

c.It can achieve a maximum stable tension output of 5000g.

BASIC SPECIFICATIONS OF MET - HE SERIES

Series	Model	Wire Dia.(Mm)	MAX WIRE Speed(m/S)	TENSION Range(g)	Tension Stage	Power(vdc)	Display	Communication
MET-HE series	MET-HE150	0.04-0.15	N	15-150	2	DC24V	LED	RS485
	MET-HE300	0.06-0.21	N	30-300	2	DC24V	LED	RS485
	MET-HE500	0.08-0.30	N	50-500	2	DC24V	LED	RS485
	MET-HE1000	0.10-0.45	N	100-1000	2	DC24V	LED	RS485
	MET-HE2000	0.15-0.65	N	200-2000	2	DC24V	LED	RS485
	MET-HE5000	0.30-1.20	N	600-5000	2	DC24V	LED	RS485
