Hi-speed Closed Loop Servo Tensioner ICTT Series

Get a Price/Quote

Product Details:

Product Type Servo Tensioner
General Use Industrial
Material ABS
Type Wire Winding Machine
Power Source Electric
Winding Speed 15 Meter/second (m/s)
Drive Type Electric
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Hi-speed Closed Loop Servo Tensioner ICTT Series Price And Quantity

Minimum Order Quantity 1 Piece

Hi-speed Closed Loop Servo Tensioner ICTT Series Product Specifications

Drive Type Electric
Voltage 24-48 Volt (v)
Winding Speed 15 Meter/second (m/s)
Color White
Power Source Electric
Feature Low Energy Consumption
General Use Industrial
Product Type Servo Tensioner
Material ABS
Type Wire Winding Machine

Hi-speed Closed Loop Servo Tensioner ICTT Series Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 2-3 Days

Product Description

Servo Tensioner ICTT Series

HI-SPEED CLOSED LOOP SERVO TENSIONER ICTT SERIES

Digital Stabilization System;2.Support Controller Area Network;3.Closed-Loop Constant Tension Control4.Real-Time Tension Measurement And Display

This Series Features High Speed Closed Loop Servo Tensioners With A Maximum Wire-Feeding Speed Of 15 Meters Per Second. Its High-Speed/High Torque DC Servo Motor And Built-In Adaptive Speed Control Software Provides Fast Response To Rapid Changes In Coil Winding Speed And A Wider Tension Range For High-Speed Precision Winding. Suitable For High Speed Precision Winding, Improve Winding Efficiency And Coil Quality.

Advantages :

Please choose the tension rod and spring suitable for the tension value to use;
Do not touch the transmission and rotating parts and block the tension rod when using the tensioner;
Do not let the tensioner drop or be damaged by strong impact;
Adjust the tension value according to the need, and select the appropriate model specification.

REQUIERMENTS :

Power Supply : DC 24V /48V

BASIC SPECIFICATIONS OF ICTT SERIES

Model	Tension Range (grms)	Max Wire Travel Speed	Power Supply ( A )	Applicable Wire Size (mm)	Dimensions (mm)
ICTT200	1-200	15	DC24V	3.5	0.01-0.18
ICTT400	2-400	15	DC24V	3.5	0.02-0.25
ICTT800	30-800	15	DC48V	5.5	0.06-0.40

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Servo Tensioners' category

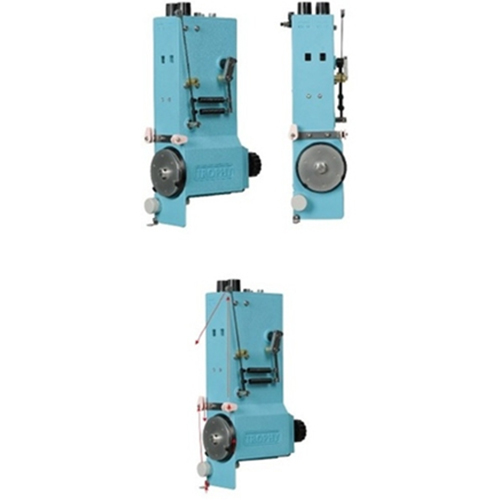

Pulse Servo Tensioner DS-TT Series Minimum Order Quantity : 1 Color : Blue Product Type : Pulse Servo Tensioner Material : ABS , Other Feature : Low Energy Consumption, High Precision Type : Wire Winding Machine General Use : Industrial Drive Type : Electric Power Source : Electric
