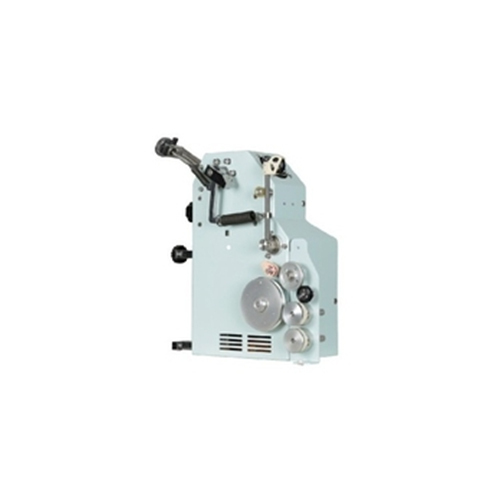

Hi-speed Closed Loop Servo Tensioner Nsx-CF Series

Get a Price/Quote

Product Details:

Product Type Servo Tensioner
General Use Industrial
Material ABS
Type Wire Winding Machine
Power Source Electric
Winding Speed 15 Meter/second (m/s)
Drive Type Electric
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Hi-speed Closed Loop Servo Tensioner Nsx-CF Series Price And Quantity

Minimum Order Quantity 1 Piece

Hi-speed Closed Loop Servo Tensioner Nsx-CF Series Product Specifications

Voltage 24-48 Volt (v)
General Use Industrial
Product Type Servo Tensioner
Feature Low Energy Consumption
Type Wire Winding Machine
Power Source Electric
Color White
Drive Type Electric
Winding Speed 15 Meter/second (m/s)
Material ABS

Hi-speed Closed Loop Servo Tensioner Nsx-CF Series Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 2-3 Days

Product Description

Servo Tensioner - NSX-CF Series

HI-SPEED CLOSED LOOP SERVO TENSIONER NSX-CF SERIES

This series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 15 meters per second. Its high-speed/high torque DC servo motor and built-in Adaptive Speed Control Software provides fast response to rapid changes in coil winding speed and a wider tension range for high-speed precision winding. Suitable for high speed precision winding, improve winding efficiency and coil quality.

The series operates with a DC24V or dc48V power supply, and comes with two-stage tensions setting and wire breakage detection.

Advantages :

Precise, stable and consistent tension for hi-speed precision winding
Two stage tension setting
Easy adjustment of main tension and second tension
Simple and clear LED indicator
Dual spring tension control, wide tension range
Built-in wire break detection and alarm outpuT

REQUIERMENTS :

Power Supply : DC 24V /48V

BASIC SPECIFICATIONS OF NSX-CF SERIES

Model No.	Tension Range (G)	Max Wire Travel Speed(M/S)	Power Supply	Suitable Wire Size (Mm)
NSX-CF-C15-L45J400	20-400	15	24	0.02-0.25
NSX-CF-C15-L45J800	30-800	15	48	0.06-0.40
NSX-CF-C15-L45J1500	80-1500	15	48	0.10-0.50
NSX-CF-C15-L45J2000	80-2000	15	48	0.10-0.65
