Hi-speed Closed Loop Servo Tensioner Nsx-RCF Series

Get a Price/Quote

Product Details:

Product Type Servo Tensioner
General Use Industrial
Material ABS
Type Wire Winding Machine
Winding Speed 15 Meter/second (m/s)
Voltage 24-48 Volt (v)
Feature Low Energy Consumption
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Hi-speed Closed Loop Servo Tensioner Nsx-RCF Series Price And Quantity

Minimum Order Quantity 1 Piece

Hi-speed Closed Loop Servo Tensioner Nsx-RCF Series Product Specifications

Color White
Type Wire Winding Machine
Product Type Servo Tensioner
Material ABS
General Use Industrial
Feature Low Energy Consumption
Winding Speed 15 Meter/second (m/s)
Voltage 24-48 Volt (v)

Product Description

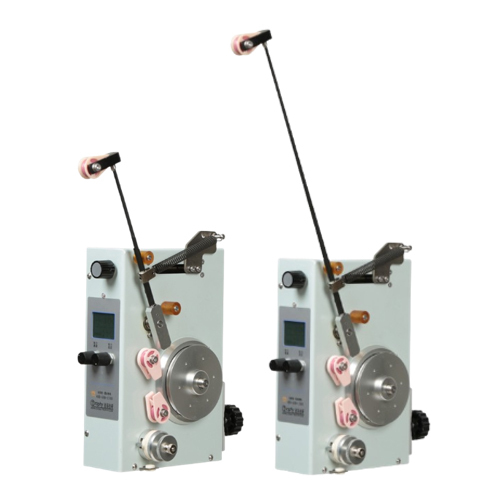

Servo Tensioner - NSX-RCF Series

HI-SPEED CLOSED LOOP SERVO TENSIONER NSX-RCF SERIES

The NSX Series Features High Speed Closed Loop Servo Tensioners With A Maximum Wire-Feeding Speed Of 15 Meters Per Second. Its High-Speed/High Torque Dc Servo Motor And Built-In Adaptive Speed Control Software Provides Fast Response To Rapid Changes In Coil Winding Speed And A Wider Tension Range For High-Speed Precision Winding. Suitable For High Speed Precision Winding, Improve Winding Efficiency And Coil Quality

The Series Operates With A DC24V/DC48V Power Supply, And Comes With Two-Stage Tensions Setting And Wire Breakage Detection.

Advantages :

Precise, Stable And Consistent Tension For Hi-Speed Precision Winding
Two Stage Tension Setting
Easy Adjustment Of Main Tension And Second Tension
Simple And Clear LED Indicator
Dual Spring Tension Control, Wide Tension Range
Built-In Wire Break Detection And Alarm Output

REQUIERMENTS :

Power Supply : DC 24V /48V

BASIC SPECIFICATIONS OF NSX-RCF SERIES

Model	Tension Range (grms)	Max Wire Travel Speed	Rated Current ( A )	Applicable Wire Size (mm)
NSX-RCF-C15-45S400	1-400	15	24	0.01-0.25
