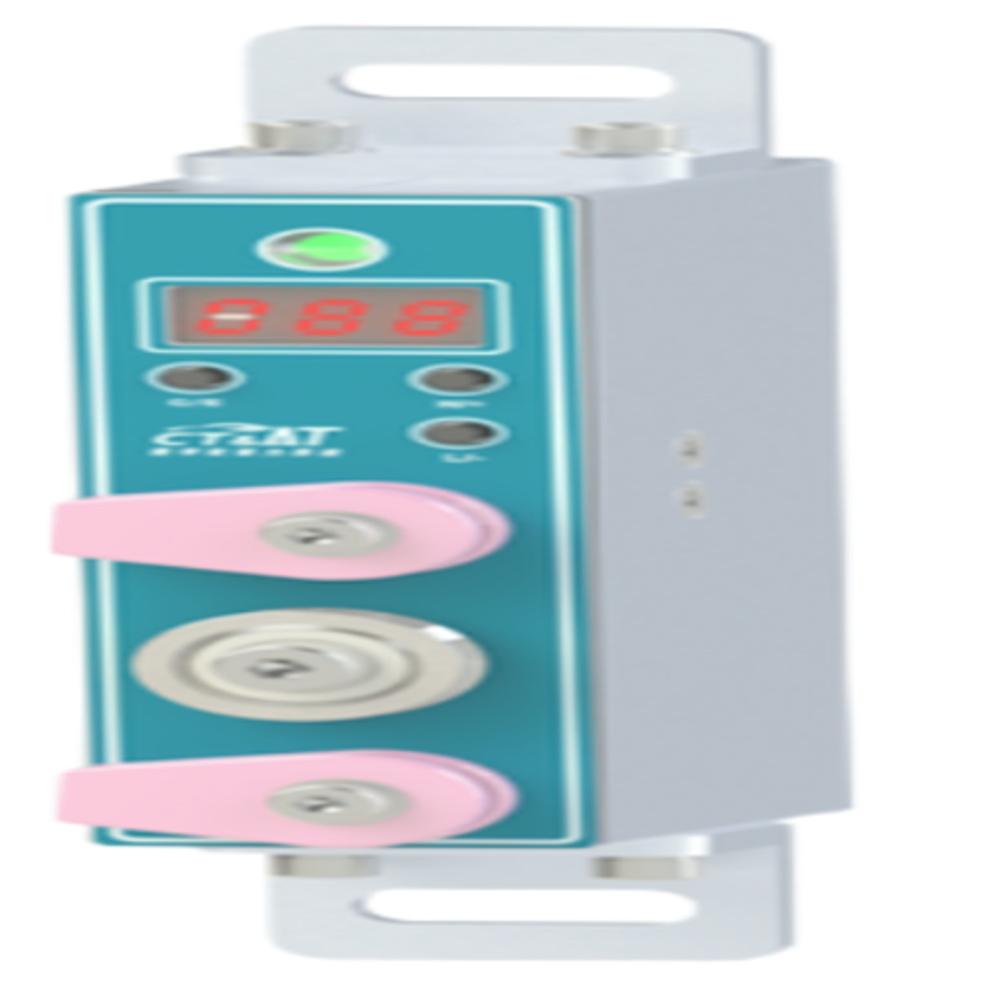

DIGITAL TENSION METER (MOUNT-ON TYPE)
50000.0 INR/Piece
Product Details:
- Gas Pressure 0.4 - 0.8 MPa (if applicable for pneumatic models)
- Response Time < 1 sec
- Frequency 50/60 Hz
- Measuring Range 0.01N - 500N
- Number of Specimens Single
- Resolution 0.01N
- Power Supply AC 220V 10%, 50/60Hz
- Click to View more
X
DIGITAL TENSION METER (MOUNT-ON TYPE) Price And Quantity
- 50000.0 INR/Piece
- 1 Piece
- Audio-visual over-limit alarm
- Anodized Aluminum
- N, kgf, lbf (selectable)
- 120% F.S. automatic stop
- Approx. 250 90 50 mm
- Real-time data output via interface
- IP 42
- Interchangeable clamps available for various samples
- Strain gauge load cell
- 1000 Hz
- Automatic/Manual
DIGITAL TENSION METER (MOUNT-ON TYPE) Product Specifications
- Measuring tension of wires, fibers, tapes, and similar materials
- 220V AC
- Approx. 2.5 kg
- Width: 2 - 60 mm; Thickness: up to 3 mm
- 1% F.S.
- 10C to 40C
- Peak hold, Zero reset, Auto power-off
- 1/4 inch NPT
- Digital Microprocessor Control
- 120 mm
- Standard 200 mm/min (customizable)
- Up to 500N depending on model
- For lab and industrial on-line tension measurement
- 20% - 80% RH (non-condensing)
- Panel/Mount-on type
- Up to 100 mm
- Semi-automatic
- Digital Tension Meter (Mount-On Type)
- 0.01N - 500N (various models available)
- LCD Digital Display
- Up to 60 mm
- 0.4 - 0.8 MPa (if applicable for pneumatic models)
- 50/60 Hz
- < 1 sec
- Single
- 0.01N - 500N
- AC 220V 10%, 50/60Hz
- 0.01N
- RS232/USB (option)
- Audio-visual over-limit alarm
- Anodized Aluminum
- N, kgf, lbf (selectable)
- 120% F.S. automatic stop
- Approx. 250 90 50 mm
- Real-time data output via interface
- IP 42
- Interchangeable clamps available for various samples
- Strain gauge load cell
- 1000 Hz
- Automatic/Manual
DIGITAL TENSION METER (MOUNT-ON TYPE) Trade Information
- 10 Piece Per Month
- 7 Days
Product Description
Tension Meter TD-H Series
The TD-H series is the flagship product among TROPHY's many measurement tools. It can be independently installed on winding machines to measure and display tension in real-time. It can also connect to a computer, allowing data collection and analysis through host software. When used with a data communication box, it interfaces with the MES system, making it an essential measurement tool for smart and automated factories. This series effectively enhances on-site work efficiency, reduces labor costs, and minimizes downtime, making it highly popular in overseas markets.
a. Utilizes CAN communication, ensuring fast data transmission with no packet loss (supports connection of up to 32 units).
b. Equipped with high-precision sensors for accurate and timely measurement data.
c. Clear display screen that shows precise tension data, allowing real-time monitoring of production status.
d. Integrated with a data analysis platform for recording, tracing, retrieving, and analyzing historical data.
e. Allows setting upper and lower limit alarms, effectively reducing winding machine downtime and minimizing losses.
f. Can be used to upgrade old equipment, transforming it into a modern, automated winding system at a very low cost.
BASIC SPECIFICATIONS OF MOUNT ON TYPE TENSION METER : TD-H SERIES
|
MODEL |
TENSION RANGE(g) |
POWER (VDC) |
DISPALY |
COMMUNICATION |
|
TD-H500 |
1-500 |
DC24V |
LED |
CAN |
|
TD-H1000 |
1-999 |
DC24V |
LED |
CAN |
|
TD-HX2000 |
200-2000 |
DC24V |
LED |
CAN |
|
TD-HX5000 |
500-5000 |
DC24V |
LED |
CAN |
|
TD-HX10KG |
1000-9999 |
DC24V |
LED |
CAN |
Advanced Measurement Technology
Harnessing a strain gauge load cell and high-speed sampling at 1000 Hz, this mount-on type digital tension meter delivers swift, accurate, and repeatable tension measurements. With a test range of 0.01N-500N and 0.01N resolution, it is built to serve meticulous laboratory checks and demanding industrial environments.
Enhanced User Safety and Flexibility
The integrated audio-visual over-limit alarm and automatic 120% F.S. overload protection ensure operator safety and equipment durability. Interchangeable clamps adapt to various sample types, while real-time data output and selectable measuring units streamline usage in diverse operational contexts.
User-Friendly Automation and Data Accessibility
Featuring automatic/manual calibration, peak hold, zero reset, and auto power-off, this digital tension meter simplifies operation. Real-time data output via interface (RS232/USB) supports streamlined reporting and statistical analysis. The robust anodized aluminum bracket and IP 42 protection grade offer operational reliability even in challenging conditions.
FAQ's of DIGITAL TENSION METER (MOUNT-ON TYPE):
Q: How is the Digital Tension Meter installed and mounted?
A: This Digital Tension Meter utilizes a panel/mount-on type installation, allowing it to be securely attached to laboratory benches or industrial machinery. The anodized aluminum bracket ensures stable support, simplifying integration into existing setups.Q: What types of materials can I measure with this tension meter?
A: This device is suitable for measuring tension in wires, fibers, tapes, and similar flexible materials. Its interchangeable clamps enable secure gripping of specimens with widths from 2 to 60 mm and thicknesses up to 3 mm.Q: When should calibration be performed and how is it managed?
A: Calibration can be done both automatically and manually depending on user requirements. It's advisable to recalibrate regularly or before critical measurements to maintain the high 1% F.S. accuracy standard.Q: Where does the Digital Tension Meter typically find application?
A: Common uses include laboratory tension tests, production line quality assurance, and real-time tension monitoring in industrial settings across electrical, textile, and packaging sectors throughout India.Q: What is the process for capturing and exporting data from the instrument?
A: The meter provides real-time data output via an RS232 or USB interface. Data can be streamed directly to computers or analysis software for immediate viewing, recording, and quality control documentation.Q: How does the device protect both the specimen and instrument during operation?
A: The meter features automatic overload protection up to 120% full scale and an audio-visual over-limit alarm, which halts the test to prevent equipment and sample damage in case of excessive force.Q: What are the benefits of using this digital tension meter compared to manual devices?
A: Users benefit from high-speed, accurate digital readings; automated features such as peak hold and auto power-off; interchangeable clamps for versatility; and seamless data management for enhanced efficiency and traceability in both lab and industrial environments.Tell us about your requirement
