Ceramic Coil Winding Nozzles CN Series

Ceramic Coil Winding Nozzles CN Series
Ceramic Coil Winding Nozzles CN Series
Send Inquiry
Product Code : 32
Product Description

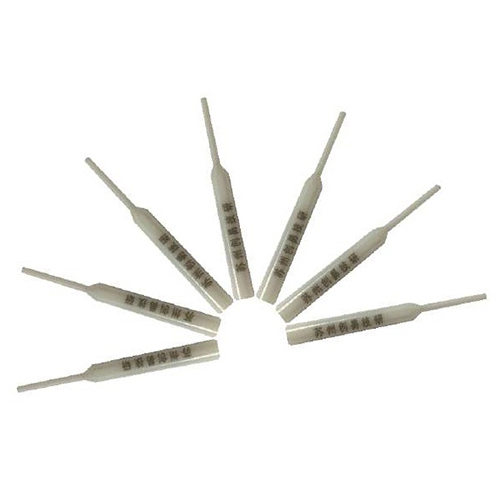

TROPHY's ceramic nozzles are made for advanced coil winding requirements. They are excellent for the ultra-high speed winding with high accuracy requirements.

The CN series ceramic nozzles are made of Nano -zirconia material with a material hardness of 1500HV and bending resistance up to 1700N/mm2. All radii are scientifically calculated and processed to ensure smooth travelling and minimal stress to the wire during ultra-high speed winding.

Technical Specifications (unit : mm)

Code

Model

D1

d1

L1

D (Dia)

CN 0.8

CN0330-030-0807

0.8

0.3

7.0

3

CN 1.0

CN0430-030-1010

1.0

0.4

10.0

3

CN 1.0

CN0530-030-1010

1.0

0.5

10.0

3

CN 1.4

CN0730-030-1410

1.4

0.7

10.0

3

CN 2.0

CN0830-030-2014

2.0

0.8

14.0

3


  • Specifications are subject to change without notice.
  • More size available, contact us for more details.
