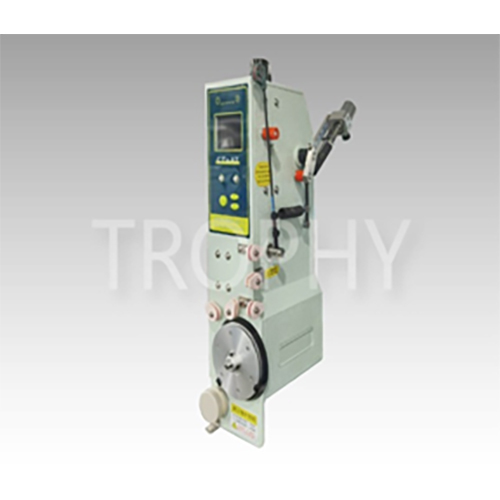

DSV-ETK Series Hi Speed Servo Tensioner With Display

DSV-ETK Series Hi Speed Servo Tensioner With Display
DSV-ETK Series Hi Speed Servo Tensioner With Display
Send Inquiry
Product Code : 07
Brand Name : TROPHY
Product Description
The DSV-ETK series  features  high  speed  closed  loop  servo  tensioners  with  a  maximum  wire - feeding  speed  of  25  meters  per  second.  The  combination  of  a  built - in Adaptive Speed Control software and high speed/high  torque  DC  servo  motor provides fast response to rapid changes in coil winding speed and a wider Tension range for  Hi-speed  precision winding.It also features  a built-in  tension   measurement  system. The  real time  display of the tension value provides a clear and convenient   way to observe the winding  tension, aiding in better  control of product  quality. The series  operates with a DC48V  power  supply and comes with two-stage  tensions  setting wire  breakage  detection.



More Details :

Our noted company is active in providing a wide collection of DSV-ETK Series Hi Speed Servo Tensioner. This speed servo tensioner comes with real-time tension measurement and display. The offered servo tensioner is appreciated for its optimum performance, superior quality and enhanced service life. We use premium quality factor inputs that are obtained from some of the reliable vendors of the market. The offered DSV-ETK Series Hi Speed Servo Tensioner is sternly tested by our quality auditors at the time of manufacturing to provide only the best quality servo tensioner to our clients.


Advantages

  • Simple & clear LED indicator
  • Easy adjustment of main tension
  • Dual spring tension control, wide tension range


Technical Specifications

Model

Tension Range (grams)

Max Wire Travel speed

Current Consumption

Applicable wire

size (mm)

Dimensions(mm)

Weight (Kg)

DSV-ETK-C15-45S400

1.0g-400g

15m/s

3.0A

0.01-0.25

320*185*80

2.0

DSV-ETK-C15-45J1000

30g-1000g 15m/s 4.5A 0.06-0.40 400*200*80 3.2

Specifications are subject to change without notice.


Requirements :

  • Power supply - DC 48V
  • Compressed air. 5kg/cm2
