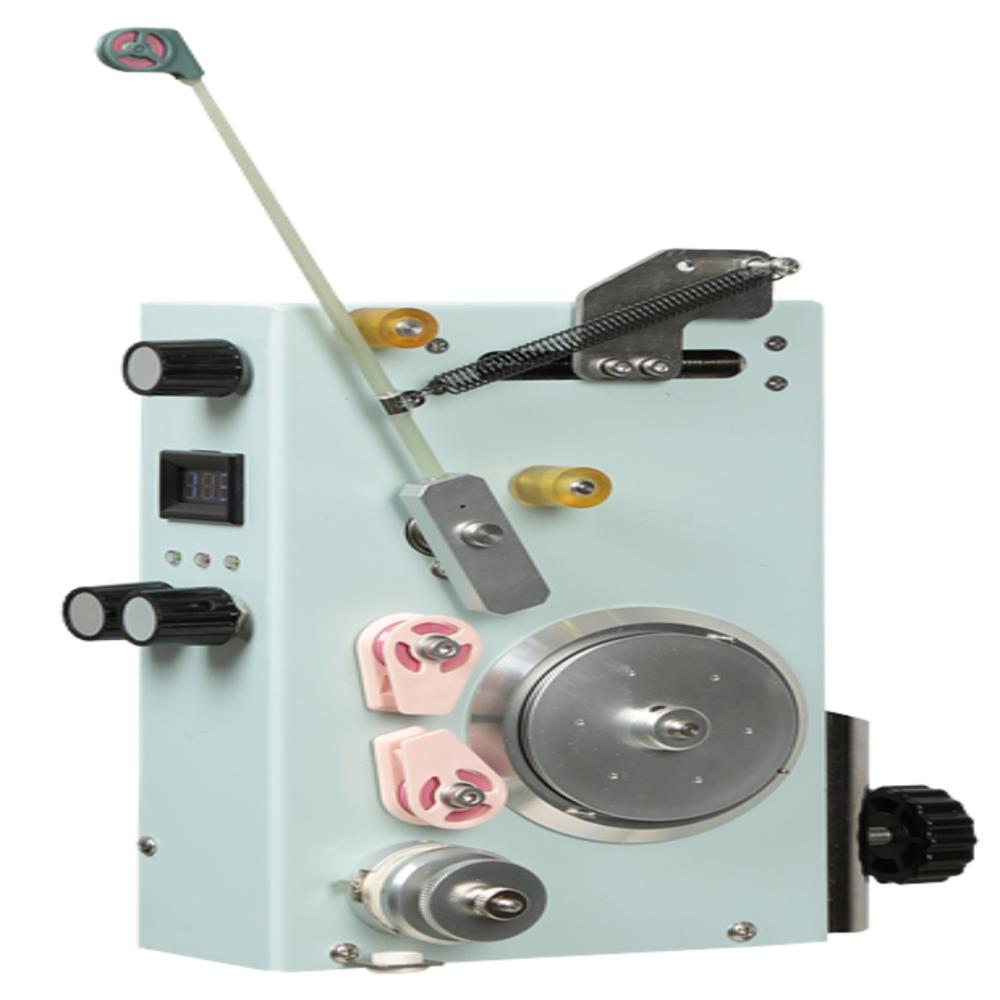

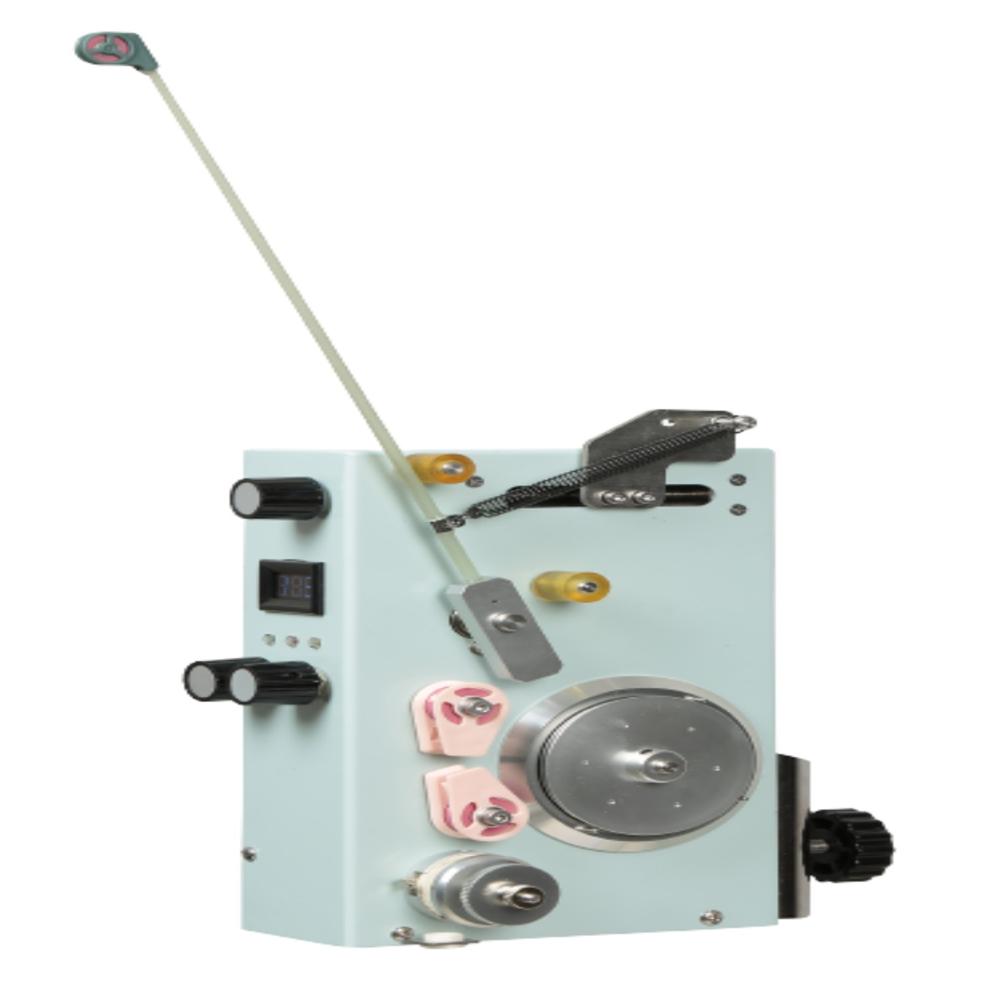

Electronic Tensioner MET-F Series
100000.0 INR/Number
Product Details:
- Product Type Magnetic Tensioner
- General Use Precise Coil Winding Applications
- Material Cast Iron
- Type Met-fc Series
- Weight (kg) Approx. 2.5 kg
- Computerized Yes
- Automatic Yes
- Click to View more
X
Electronic Tensioner MET-F Series Price And Quantity
- 100000.0 INR/Number
- 1 Number
- Built-in WiFi, Screen Mirroring
- Yes
- 178
- Android
- 60 Hz
- 2
- AAA
Electronic Tensioner MET-F Series Product Specifications
- Yes
- 220V AC
- Microprocessor Based
- Approx. 2.5 kg
- Precision Spindle
- Yes
- Electronic
- Sliver
- Constant Tension, Magnetic Control, Maintenance Free
- AC Electric
- Up to 10,000 rpm
- Met-fc Series
- Cast Iron
- Single / Double
- Up to 200 mm
- Magnetic Tensioner
- Precise Coil Winding Applications
- 15W
- 160 x 70 x 110 mm
- Built-in WiFi, Screen Mirroring
- Yes
- 178
- Android
- 60 Hz
- 2
- AAA
Electronic Tensioner MET-F Series Trade Information
- 1 Number Per Day
- 3 Week
Product Description
* ELECTRONIC TENSIONER
Tensioner Electronic Tensioner MET-F Serie
The built-in electromagnetic hysteresis device generates different damping effects through the conversion of the electromagnetic field. By adjusting the voltage in the control circuit, the strength of the magnetic field in the hysteresis device is modified, thereby controlling the output torque and the adjustable tension value.
a. The damping can be adjusted by changing the voltage, making the operation simple.
b. Dual display screens at the front and rear facilitate monitoring of production conditions.
c. Two symmetrical machine models with the wire wheel on the left or on the right are available, offering diverse options based on space requirements.
d. The tension equipment is equipped with display screens on both the front and rear, making it convenient to monitor during both adjustment and operation.
ADVANTAGES OF MET-F
2 tension settings available for single winding program
Dual screen Digital Display
Real - time reference value display
BASIC SPECIFICATIONS OF MET F SERIES
|
MODEL |
WIRE DIA.(mm) |
MAX WIRE SPEED(m/s) |
TENSION RANGE(g) |
TENSION STAGE |
POWER (VDC) |
DISPALY |
COMMUNICATION |
|
MET-F500 |
0.07-0.3 |
N |
50-500 |
2 |
DC24V |
LED |
N |
|
MET-F1000 |
0.1-0.45 |
N |
100-1000 |
2 |
DC24V |
LED |
N |
|
MET-F2000 |
0.15-0.65 |
N |
200-2000 |
2 |
DC24V |
LED |
N |
|
MET-F3000 |
0.20-0.80 |
N |
300-3000 |
2 |
DC24V |
LED |
N |
