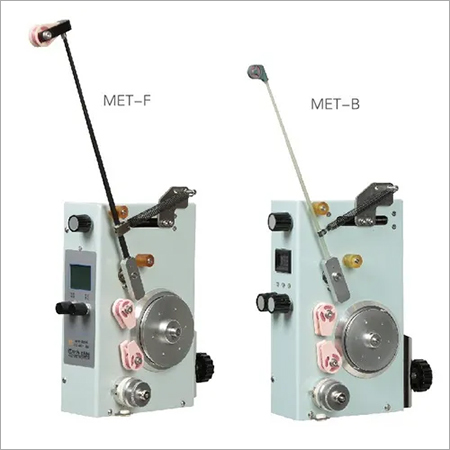

MET-B Series Electronic Tensioner with Multiple Tension Settings

MET-B Series Electronic Tensioner with Multiple Tension Settings

Name: MET-B / MET-F Series Electronic Tensioner with Multiple Tension Settings
Brand: TROPHY TECH INDIA

99999.0 INR/Number

Get a Price/Quote

Product Details:

Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

MET-B Series Electronic Tensioner with Multiple Tension Settings Price And Quantity

Price 99999.0 INR/Number
Minimum Order Quantity 1 Number

MET-B Series Electronic Tensioner with Multiple Tension Settings Trade Information

Supply Ability 2000 Number Per Month
Delivery Time 3 Week
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India

Product Description

* ELECTRONIC TENSIONER

Tensioner Electronic Tensioner MET-B Serie

The MET-B Series multiple tension series allows for different tensions settings in different stages of a winding program. The tension is generated using hysteresis brakes and built-in control circuit. The controllable voltage input setting helps achieve smooth, stable and consistent tension output. The series operates with DC24V & switching between the pre-set tensions is simple. It comes with wire breakage detection

This product has 4-stage tension setting function, and can realize 4-stage tension control when combined with winding machine.

The MET-B model has two symmetrical models: left (L) and right (R), with the same technical parameters. Customers can choose according to their needs and indicate it when placing an order.

Simple structure, easy threading

Equipped with the latest control system, it can achieve stable output of 3000g tension.

Four tension levels can be switched, so the application range is wider.

ADVANTAGES OF MET-B

a. Tension attenuation.
b. Wire break detection.
c. Four-stage tension.

d. Large LCD screen display, easy to observe.

BASIC SPECIFICATIONS OF MET B SERIES

MODEL	WIRE DIA.(mm)	MAX WIRE SPEED(m/s)	TENSION RANGE(g)	TENSION STAGE	POWER(VDC)	DISPALY
MET-B500	0.07-0.30	N	50-500	4	DC24V	LCD
MET-B1000	0.10-0.45	N	100-1000	4	DC24V	LCD
MET-B2000	0.15-0.65	N	200-2000	4	DC24V	LCD
MET-B3000	0.20-0.80	N	300-3000	4	DC24V	LCD

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electronic Tensioners' category

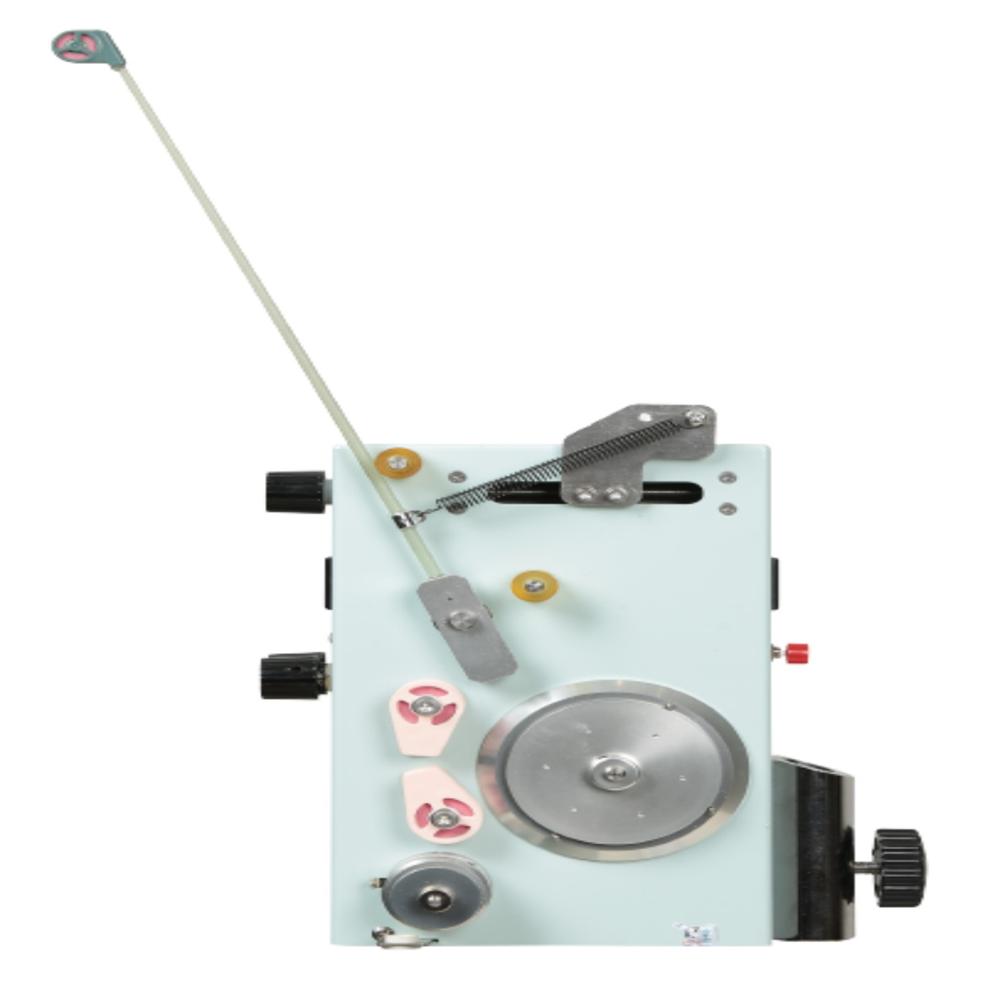

Electronic Tensioner MET-F Series Price : 100000.0 INR/Number Minimum Order Quantity : 1 General Use : Precise Coil Winding Applications Material : Cast Iron Power Source : Other, AC Electric Computerized : Yes Color : Sliver Automatic : Yes Feature : Other, Constant Tension, Magnetic Control, Maintenance Free Type : Other, Metfc Series Drive Type : Other, Electronic Voltage : 220V AC
