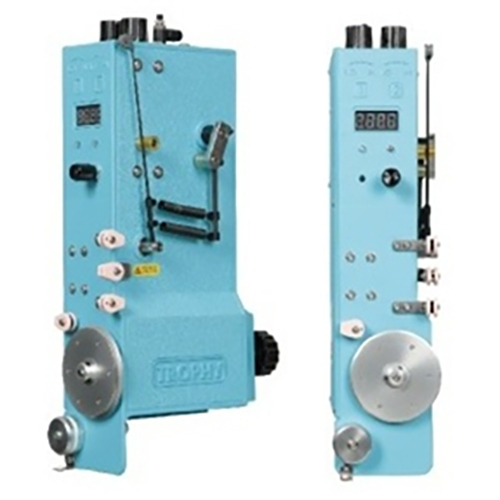

Pulse Servo Tensioner (With Real Time Tension Display) DS-ETK-C

PULSE SERVO TENSIONER

PULSE SERVO TENSIONER (WITH REAL TIME TENSION DISPLAY) DS-ETK-C SERIES

With a pulse motor, a tension control system and a tension measurement system all packed within the body casing, the

DS-ETK-C series is compact in design. The sensitive and quick response feedback control system provides precise, stable

And consistent tension for high-speed quality winding. Two different tension values can be set. It also features a built-in

Tension measurement system. The real time display of the value provides a clear and convenient way to observe the

Winding tension, aiding in better control of product quality. The series comes with two stage tension setting and wire

Breakage detection. The real time display of the value provides a clear and convenient way to observe the winding

Tension, aiding in better control of product quality. It also features a built-in tension measurement system. Two different

Tension values can be set. The sensitive and quick response feedback control system provides precise, stable and

Consistent tension for high-speed quality winding.

Classic servo tensioner DS-ETK series

a. Closed-loop servo control, stable tension output.

b. Classic model, reliable quality.

c. With the cylinder, the tension can be switched between two stages.

d. Maximum line speed 10m/s.

e. Equipped with an LED digital display, making it easy to monitor data and track winding tension in real time.

REQUIERMENTS :

Power Supply : DC 24V / DC 48V

Compressed air : 5kg/cm2

Weight (kg) : 2.5kg

Dimensions (mm) : 318mm*185mm*81mm
