Product Description

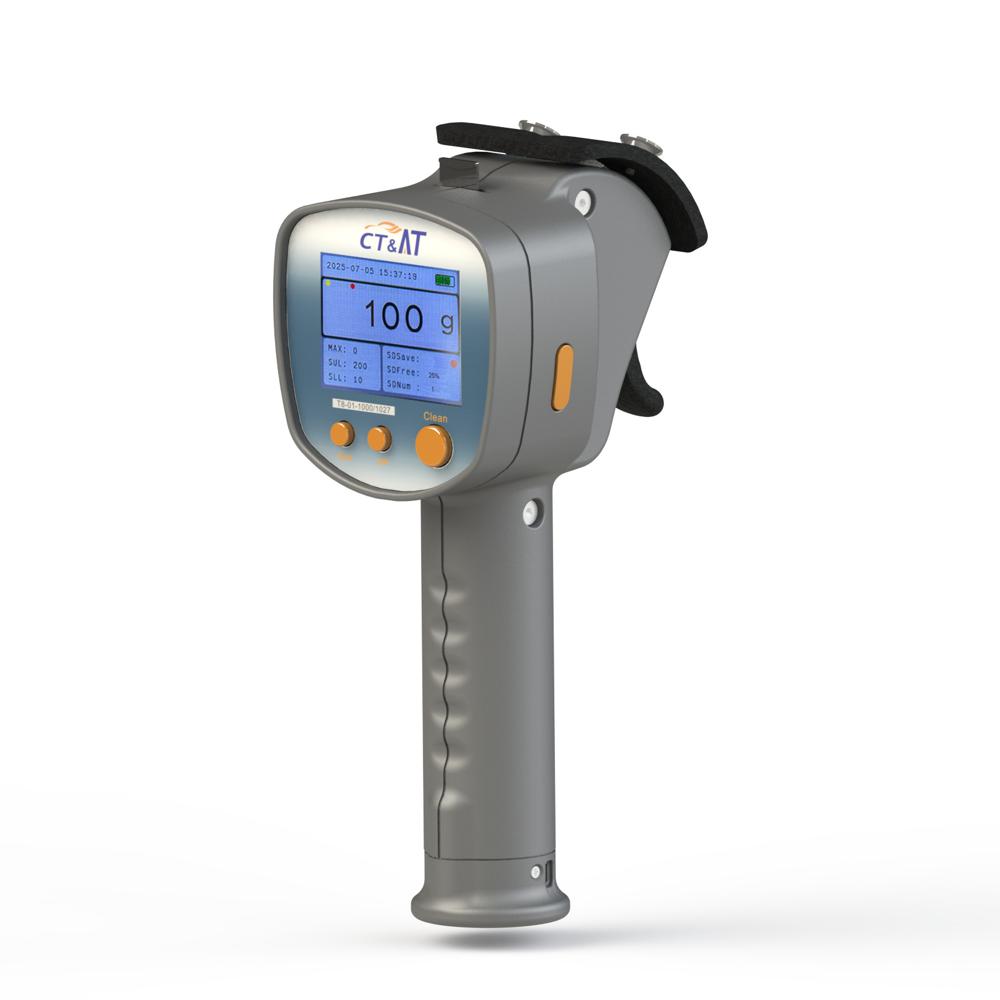

T8 Series Hand-held Electronic Tension Meter

Product Overview

The T8 Series Hand-held Electronic Tension Meter is a precision instrument designed for accurate measurement of wire tension during manufacturing and processing operations. With a compact handheld design, high-resolution display, and real-time data logging capabilities, the T8 series ensures reliable performance across a wide range of industrial applications.

Key Features

• Real-Time Tension Measurement with high accuracy

• Adjustable Upper & Lower Limits with visual color alerts

• Data Storage Function via Micro SD card for continuous recording

• 320 240 Color LCD Display with high-brightness backlight

• Ergonomic Handheld Design for ease of operation

• Simple User Interface with intuitive controls

• Type-C Charging Port for convenient power management

• High-Capacity 18650 Lithium Battery

• Compliant with 3C, CE, and UL safety standards

Technical Specifications

Functions

1. Tension Measurement

• Provides precise, real-time tension readings

• Allows setting of upper and lower tolerance limits

• Visual indicators notify users when measurements exceed limits

2. Measurement & Data Storage

• Continuous measurement recording

• Data stored directly to Micro SD card

• Supports process monitoring and quality control documentation

Display & Interface

• High-resolution 320 240 LCD color display

• Bright backlight for clear visibility in various environments

• User-friendly button interface for easy navigation

Power Supply

• Powered by 18650 rechargeable lithium battery

• Long operational life for field use

• USB Type-C charging for fast and convenient charging

Applications

The T8 Series is ideal for measuring tension in various materials, including:

• Enameled wire

• Cotton yarn

• Metal wire

• Resin wire

Common industries:

• Wire and cable manufacturing

• Textile and yarn processing

• Electronics and coil winding applications

Key Benefits

• Portable and lightweight for on-site use

• Accurate and reliable measurements

• Real-time alerts for quality assurance

• Data logging for traceability and analysis

• Wide measurement range to suit multiple applications

Operating Principle

The wire is placed within the measuring mechanism, where tension is detected and displayed in real time. The system continuously monitors the applied tension and triggers alerts if preset thresholds are exceeded. Measurement data can be recorded simultaneously for further analysis.
